Unitronics V1210

Bigger choice of screen size NEW 12.1″ screen!

0 Comments

Unitronics Uk from i4 Automation
i4 Automation Unitronics V1210

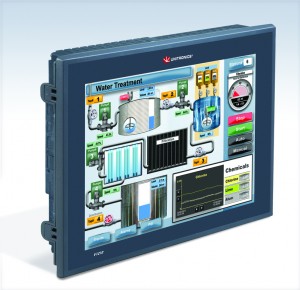

Unitronics New Vision1210 TM

PLC & 12.1” Colour HMI

As a global developer and manufacturer of Programmable Logic Controllers with on board HMIs, Unitronics is proud to introduce the newest big-screen member of their PLC+HMI  family- the Vision1210™. Industrial control processes can now enjoy full PLC functionality with a larger than ever 12.1”, 800×600 Resolution (SVGA), 65K color-touchscreen. The PLC + HMI advantage gives users the opportunity to operate on a minimum of budget, programming time and wiring.

This controller is a perfect fit for the food industry- with its IP66 rating, this unit is ideal wherever spray/wipe down applications apply. A wide variety of on board I/O options can be added by simply snapping a module onto the back of the PLC. Expandable up to 1024 I/O, these configurations include digital and analog inputs and outputs, high-speed I/O, PT100/Thermocouple capabilities, and weight measurement. They can be mounted locally or remotely, up to 1000m from the controller. This power-PLC is equipped with a built-in USB programming port, recipe capabilities, Micro SD card memory storage for data logging and back up, complete PLC cloning and more.

Systems integrators can now rely on a single device: the Vision1210™ can support 24 auto-tuned PID loops to control temperature, level, and pressure, while the 16-bit, 12.1” SVGA color touch screen displays data, color trend graphs, and attention-grabbing alarm screens. Display options are almost endless, with more than 1000 user-designed screens, and up to 500 images per application. Internal memory holds 2MB of application logic, plus 1MB for fonts and 32MB for images.

Communication options include TCP/IP Ethernet, cellular, and industrial protocols such as MODBUS, DF1 slave, J1939, CANopen and more. In addition, the Vision1210™ can be ‘taught’ to communicate via almost any device-based protocol. The controller is also capable of time based and immediate interrupts, making it a natural for ‘rapid response’ applications such as packaging machines.

Unitronics’ FREE VisiLogic software provides one user-friendly environment for hardware configuration, modular Ladder application development, and HMI design, including a rich color library of industrial images. Unitronics also offers FREE technical support for all of their products.

The Vision1210™ reduces overall system costs by minimizing hardware requirements, saving cabinet space—and, above all—exempting the user from setting up Panel-PLC communication.

For more information
http://www.i4automation.co.uk/v1210.aspx
