Unitronics Snap-In I/O Offers More Flexibility for Vision Series Integrated PLC+HMIs.

The convenience is clear: Unitronics PLC + HMI package exempts machine manufacturers from setting up Panel-PLC communication- saving programming time, cabinet space and money. This single Ladder Logic programming environment is part of the Unitronics “all-in-one package”, and is available at no additional cost.

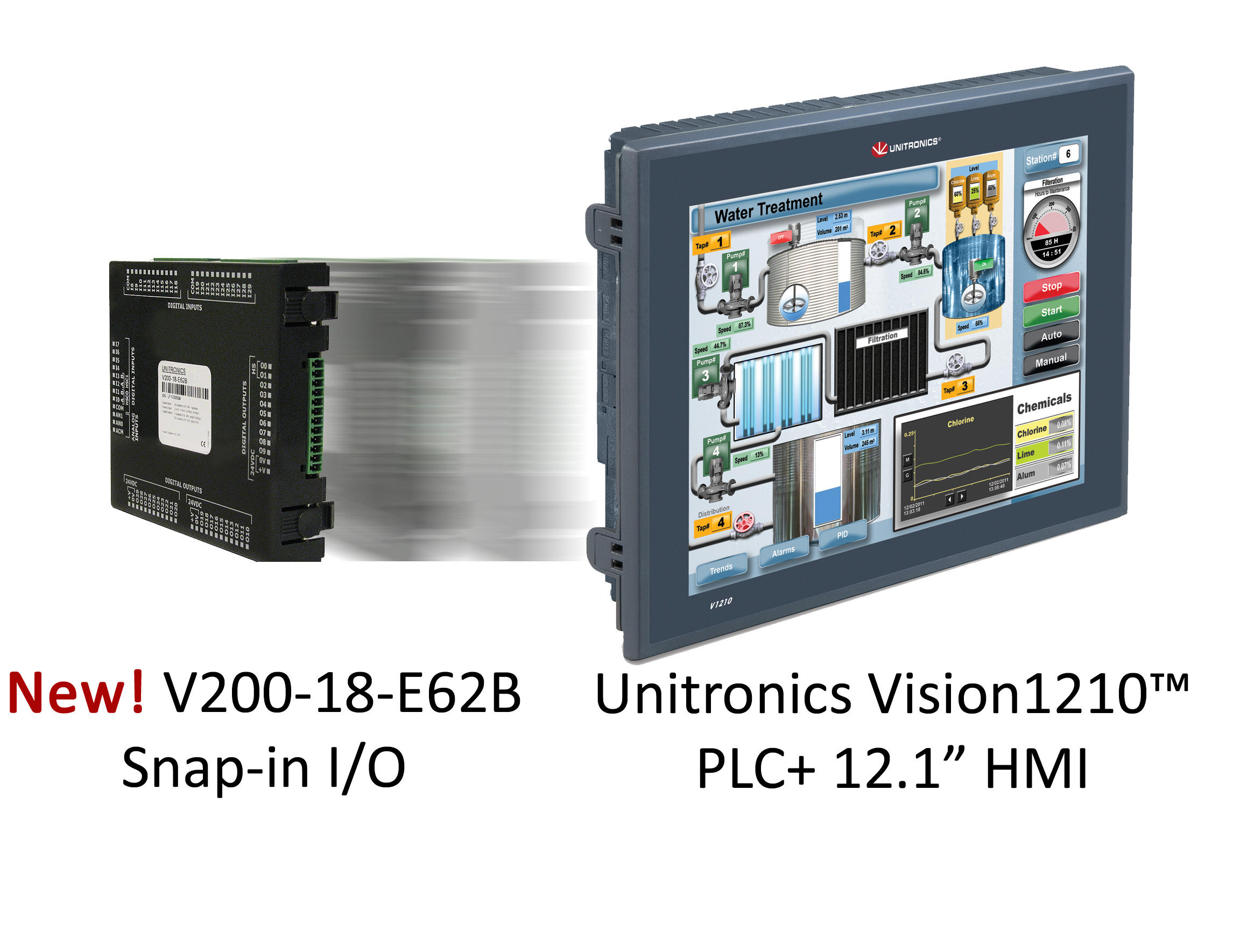

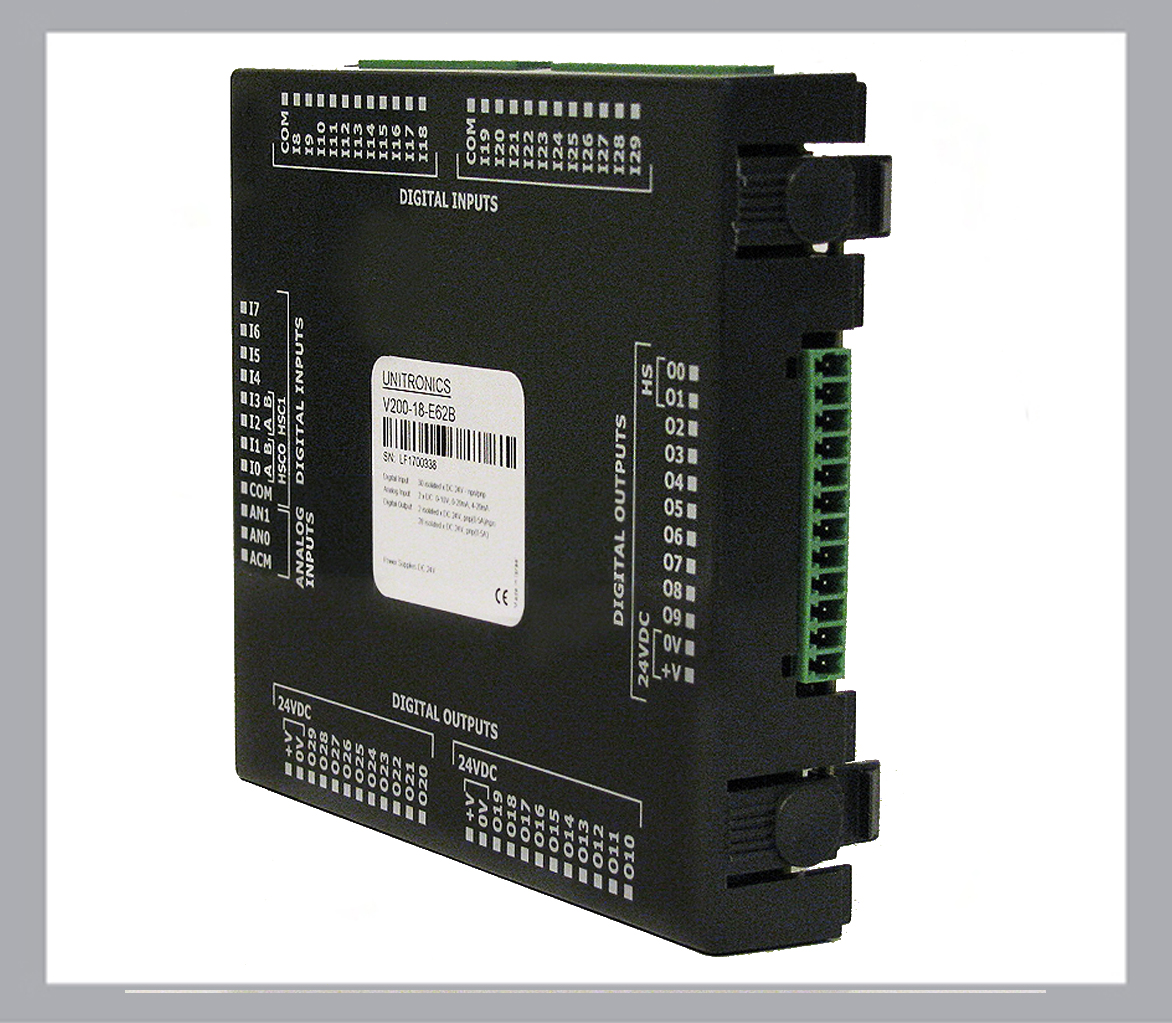

Unitronics Snap-in I/Os are a convenient, affordable way to “snap” your choice of a variety of I/O combinations directly to the back of most “Vision” series PLC + HMI controllers. Most “Vision” series controllers enable the user to pick and choose from an assortment of Snap-in I/O combinations to fit their specific application needs. A whole system’s requirements can be fulfilled with just one “Snap”! Connecting directly to the back of a Unitronics Vision200, Vision500, Vision1040 or Vision1210 series PLC+HMI, the new V200-18-E62B Snap-in module now supports a total combination of 62 analog and digital inputs and outputs. Specifically, this combination includes: 30 Digital inputs (including 2 shaft encoder inputs), 2 analog inputs, 28 digital outputs, and 2 high-speed digital outputs.

With additional expansion modules, mounted locally or remotely up to 1000m from the controller, configurations can be expandable up to 1024 I/O. Unitronics solitary Snap-in I/Os (without expansion units) typically range from 30 – (now) 62 I/O with the new V200-18-E62B. Basic Snap I/O options can include: digital and analog inputs and outputs, high-speed I/O, PT100/Thermocouple capabilities, and weight measurement.

Additional features of the “Enhanced Vision” series controllers (V1210, V1040, V570, V350, V560, V290 Color, and V130) include: A USB programming port, recipe capabilities, Micro SD card memory storage for data logging and back up, complete PLC cloning and more. Communication options include Ethernet, cellular, and industrial protocols such as MODBUS, DF1 slave, J1939, and CANopen, UniCan.



Now able to provide even more flexibility when configuring a system’s precise requirements, the new Snap-in module offers particular appeal wherever budget is a primary factor. Being equipped with many I/Os allows this snap-in module to help cut costs by taking the place of lower I/O count modules and adapters that may have otherwise been purchased.
