Does Size Matter?

0 Comments

    NEW SAMBA™ 4.3″

SM35-J-R20 SM35-J-T20 SM43-J-R20 SM43-J-T20
SM35-J-R20
SM35-J-T20
SM43-J-R20
SM43-J-T20

Following the great success of the first 3.5″ SAMBA model, we are pleased to announce the launch of a new model to the SAMBA™ series: SAMBA 4.3″

Why 4.3″?
The future of HMI is landscape. The Samba 4.3”, at its attractive price, will stand alone in its category. Plus USB programming.

 Two options

SM43-J-R20   10 Digital Inputs,  2 Digital /Analogue,  8 Relay Outputs

SM43-J-T20   10 Digital Inputs, 2 Digital /Analogue, 8 Transistor Outputs

When can I get them?
3-4 days delivery – limited quantity only.
Where can I find the technical specifications and installation guide? http://www.i4automation.co.uk/samba.aspx

UniStream™  16″ HMI panel

USP-156-B10UniStream™ 15.6” HMI PANEL
USP-156-B10 UniStream™ 15.6” HMI PANEL


We are pleased to introduce additional model to the UniStream™ series with a 16″ display USP-156-B10

New
7” HMI Panel 10.4” HMI Panel 15.6” HMI Panel
Number of I/Os per CPU Up to 2,048
(On-board, local and remote)
On-board Uni-I/O™ or Uni-COM™ Modules Snap up to 3 slim modules(1) Snap up to 5 slim modules(1)
(All-in-One configuration)
Local Uni-I/O™ Modules The UniStream™ CPU supports a maximum of 85 slim Uni-I/O™ (1)
(including the on-board modules)
Communication
Ports 2 Ethernet • 1 RS485 • 1 CANbus •2 USB host ports • 1 USB device port for programming
Protocols MODBUS, CANopen, BACnet(2)
Message  Composer for 3rd party protocols
HMI Panel
Type TFT, LCD, Touch HMI Panel
Size 7” (16:9) 10.4” (4:3) 15.6” (16 : 9)
Resolution 800×480 (WVGA) 800×600 (SVGA) 1366×768
Colors 65,536 (16bit) 16M (24bit)
Display Backlight Illumination White LED
Environment
Protection IP66, IP65, NEMA4X when panel-mounted (3)
Operating Temperature -20°C to 55°C (-4°F to 131°F) 0°C to 50°C (32°F to 122°F)



When can I get them?
The units are available on stock – limited quantity only.
Where can I find the technical specifications and installation guide? http://www.i4automation.co.uk/ng4.aspx

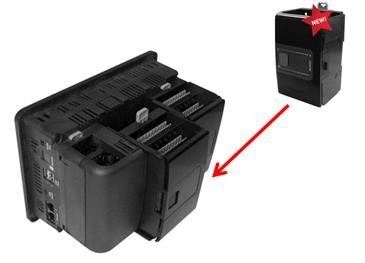

Wide Uni-I/O

UID-W1616RDigital I/O unit, DIx16+ROx16, 24V DC UID-W1616T Digital I/O unit, DIx16+TOx16, 24V DC
UID-W1616R Digital I/O unit, DIx16+ROx16, 24V DC
UID-W1616T Digital I/O unit, DIx16+TOx16, 24V DC

We are pleased to introduce the new wide Uni-I/O™ models

UID-W1616R, Digital I/O: 16 inputs and 16 Relay output
UID-W1616T, Digital I/O: 16 inputs and 16 Transistor output

When can I get them?
The units are available on stock – limited quantity only.
Where can I find the technical specifications and installation guide? http://www.i4automation.co.uk/ng4.aspx

Thermocouple Uni-I/O

UIS-08TCAnalogue I/O unit, 8 Thermocouple
UIS-08TC Analogue I/O unit, 8 Thermocouple

We are pleased to announce the launch of a new Thermocouple Uni-I/O™

UIS-08TC, 8 thermocouple inputs

Where can I find the technical specifications and installation guide http://www.i4automation.co.uk/ng4.aspx





Black V1210

V1210-T20BJ12.1” Colour touch screen TFT, IP66,  800 x 600 Resolution (SVGA), 65k Colours, White LED-illuminated backlight, USB programming port,Up to 1024 I/Os,CANbus Port, 3 x RS232/485 V1210-T20BJ-N 12.1” Colour touch screen TFT, IP66,  800 x 600 Resolution (SVGA), 65k Colours, White LED-illuminated backlight, USB programming port, Up to 1024 I/Os, No Branding, CANbus Port, 3 x RS232/485
V1210-T20BJ 12.1” Colour touch screen TFT, IP66, 800 x 600 Resolution (SVGA), 65k Colours, White LED-illuminated backlight, USB programming port,Up to 1024 I/Os,CANbus Port, 3 x RS232/485
V1210-T20BJ-N 12.1” Colour touch screen TFT, IP66, 800 x 600 Resolution (SVGA), 65k Colours, White LED-illuminated backlight, USB programming port, Up to 1024 I/Os, No Branding, CANbus Port, 3 x RS232/485

Following the success of the V350-J, V130-J and Jazz-J, we are pleased to announce: Vision1210™ is changing to BLACK.

Vision 1210™ with a new look – the old look is discontinued

As a result of ongoing dialogue with the market, in the past 2 years  Unitronics re-launched  V130™, V350™ and Jazz®   models  with new flat black design.  In these two years,  a  large number of  positive  feedbacks arrived and Unitronics distributors  around the globe reported  that customers are more excited to buy  the black flat front panel  models  thanks to the elegant  and modern look. Following to this success, Unitronics is taking another step forward and is re- launching the successful V1210™ model in black flat design.

What are the prices of the new black V1210? The same as the old  grey design

Where can I find the technical specifications and installation guide?

The same as  the old grey design – the old design is discontinued. http://www.i4automation.co.uk/v1210.aspx

BACnet to Modbus Gateway GW-BAC1

GW-BAC1BACnet to Modbus Gateway
GW-BAC1 BACnet to Modbus Gateway


We are pleased to announce the launch of a new Building Automation System Gateway Interface: BACnet to Modbus Gateway

What is the BACnet to Modbus Gateway?

Unitronics    Building   Automation   System   BACnet    Gateway   Interface  is  an  external,   high performance, low cost gateway, providing control and access to the most widely used building automation protocol. The device provides protocol conversion between Unitronics’ PLCs and BAS (Building Automation System) devices using BACnet IP and BACnet MSTP.

This module will be useful to customers who want to use Untironics’ PLCs in machines and instruments destined for Building Automation. This includes boilers, pumps, furnaces, gas control, HVAC, energy control, air filtering and more;   The module will facilitate the communication between the machine including Unitronics PLC, and the whole building system.

GW-BAC1, BACnet to Modbus Gateway
